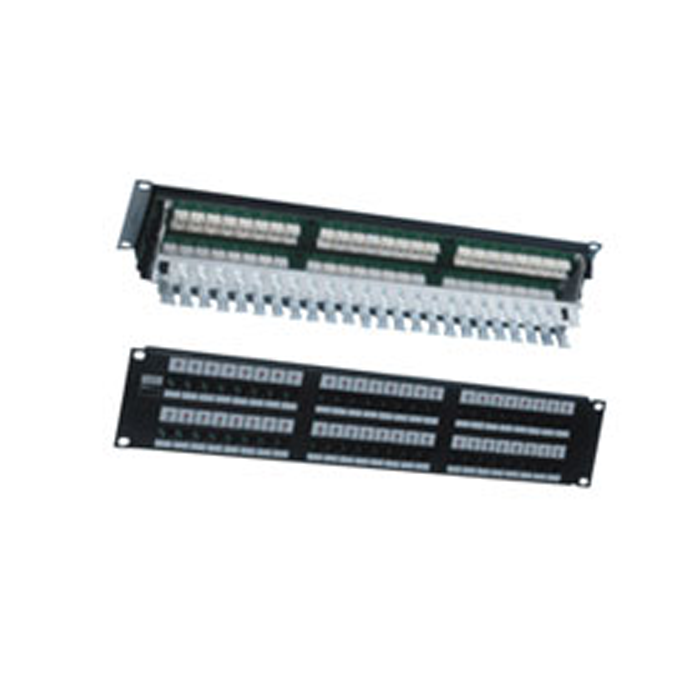

Smart CLASSix 24/48 UTP Patch Panels
The panels conform to ANSI/TIA/EIA-568-B.2-1, ISO/IEC 11801 2nd edition (2002) and CENELEC EN50173 (2002) for Category 6/Class E, and are designed for high-speed applications such as ATM 622 Mbps Gigabit Ethernet 1000 Mbps and future high speed applications. Servicing time is dramatically reduced as computerized LED displays guide the technician when performing Moves, Adds and Changes(MACs).
Feature
- Support 24 ports per 1U, 48 ports per 2U.
- Enchanced cable retention fixture.
- Unique assembly fixture.
- Cloor coded wiring blocks, compatible with both T568A and T568B wiring options.
- Backward compatible with Category 5e cabling standards
- Supports solid 22-24 AWG wires and stranded 24-26 AWG
